Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient
제품 상세 정보
| 힘 | 10-50kw, (공급 10-300kw를 캔으로 만드십시요) | 빈도 | 중간 주파수, 고주파 |
|---|---|---|---|
| 상표 | 중국 선두 제조업체인 캔로온 | 포장 | 나무 케이스 |
| 해운 | 공중, 당신으로서의 급행, 바다는 요구합니다 | 유도 가열 | IGBT |
| 회로 | 디지털 회로 제어 | 설계 | 모듈 식 디자인 |
| 애플리케이션 | 유도 가역 납땜, 경화증, 금속 열 처리, 기타 등등 | 적합한 금속 | 구리, 놋쇠, 철강, 알루미늄, 철, 기타 등등 |
제품 설명

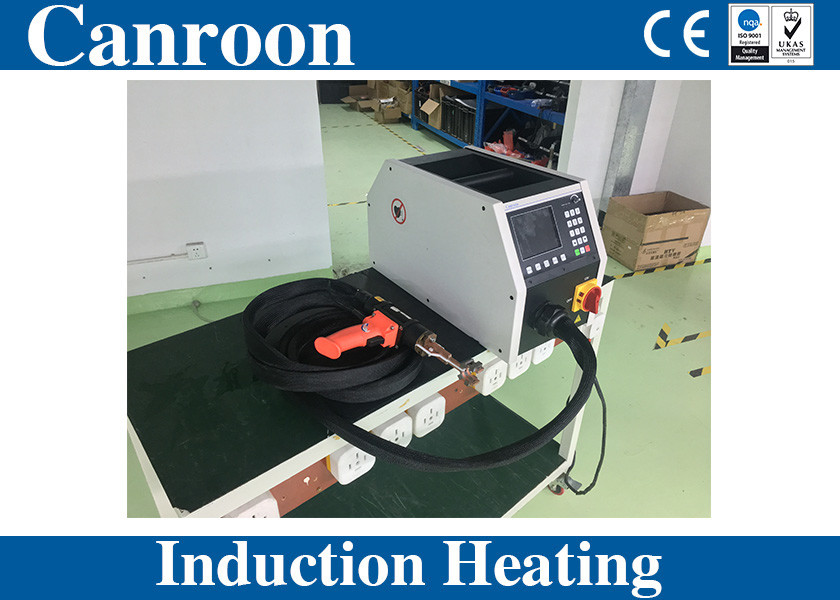

Water Cooling High Frequency Portable Induction Brazing Equipment
Brief introduction of Canroon water cooling high frequency portable induction brazing equipment:
CR2100 series induction brazing equipment, designed with digital circuit and modular design, equipped with LCD display, bring you advanced system with reliability, and high efficiency.
for portable type, machine is small in size, light in weight, water cooling induction cable, HHT/handheld coaxial transformer for easy handle and operation, for the inductor, we can customize it according to your workpiece.
Application details:
Materials:
All metal materials including iron, copper, zinc, tin, aluminum, silver, stainless steel, titanium, nickle, etc.
Applications:
Brazing, Hardening, Annealing, Straightening, Shrink Fitting, Bolt Untighten, Paint/Coating Removal, etc.
Workpieces:
<> Electric motor: short circuit ring, flip ring, armature winding, flat copper wire, etc.
<> Heat exchanger: copper tube;
<> Automobile die;
<> Crank shaft;
<> Oil&gas pipe.
see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar, short circuit ring, copper plate, brass/slip ring, etc
Technical Parameters of portable high frequency induction hardening machine:
| Model | Rated input voltage & frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure / flow rate | Dimension |
| CR2100-010B-14TW1 | 3-phase /400V (±20%) 50/60Hz |
10KVA | 15A | 10~40KHZ |
4~6 bar ≥12L/min |
L: 581mm W: 283mm H: 334mm |
| CR2100-015B-14TW1 | 15KVA | 22A | ||||
| CR2100-020B-14TW1 | 20KVA | 30A | ||||
| CR2100-025B-14TW1 | 25KVA | 37A |
4~6 bar ≥19L/min |
|||
| CR2100-030B-14TW1 | 30KVA | 45A | ||||
| CR2100-035B-14TW1 | 35KVA | 53A | ||||
| CR2100-040B-14TW1 | 40KVA | 60A | ||||
| CR2100-050B-14TW1 | 50KVA |
75A |
Product features:
1. High efficient: thermoelectric conversion efficieny: >85%;
2. Enviromental friendly: zero pollution, zero discharge;
3. Intelligent: PID temperature closed-loop control, precise temperature control;
4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.
5. Operation interface: humanized MMI, chinese/ English available;
6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;
7. Automation integration: Quickly and easily integrated into automated production lines;
8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
